Welcome to Test Execution Hub’s documentation!

This repository contains the implementation of a generic test execution hub, enabling the creation of test templates, the scheduling of test instances, device discovery, filtering, and comprehensive evaluation. Initially developed for automating the execution and assessment of diverse Physical Unclonable Functions (PUFs), the platform was adjusted to support the generic execution of virtually any test type.

Key features

Test template definition: Test templates can be defined by a json description language. The framework automatically generates the corresponding database schema and GUI elements.
Devices management: Devices are required to execute a certain test instance. A device management plugin was implemented, allowing either the automatic discovery of devices in the network and a management platform for manually added devices.
Test scheduling: The platform enables the scheduling of tests on instances given a certain test template. Each test instance is executed by a device listed in the device management plugin. The platform supports the simultaneous scheduling and monitoring of multiple tests, enhancing efficiency and flexibility in test execution.
Test result management: This component allows the management and filtering of test results, generated by a test instance. Users can selectively choose tests, apply post-processors, utilize visualizers, and employ evaluation algorithms to the list of selected results.
Seamless Integration with Existing Measurement Data: Already existing measure data can be uploaded annotated and integrated with the measurement database.
Data Post-processing and Visualization Capabilities: Define post-processing, evaluation, and visualization algorithms to enable interactive assessment of measurements. This feature facilitates the exploration and analysis of results, with the ability to export them as vector graphics for further use.

Architectural Overview

We use a generic design allowing easy extension, replacement, and maintenance of different components. In general, the architecture is composed of three different layers:

Frontend: Currently implemented as a web application, the frontend allows user interaction through a single-page application (SPA).
Backend: Responsible for managing the frontend’s state, database access, and test execution, the backend communicates with the frontend via a REST API. It efficiently schedules tests across multiple microservices, establishing connections through the NATS messaging service.
Test microservice: Multiple microservices operate as individual execution instances, enabling the independent execution of tests that the backend schedules on specific devices using a sample. In the case of memory-based PUFs, the memory module serves as the sample, connected to the device, such as a microcontroller. This modular design enhances flexibility and scalability within the system architecture.

License

Unless otherwise noted, the source files are distributed under the MIT license found in the LICENSE file.

Getting Started

How to run

To run the frontend and backend server in docker-compose, execute the following command:

docker-compose up

The microservice is implemented as simple python implementation. Which can be executed by

python3 start_microservice.py

to execute each component seperatly, please look up the [documentation]() or the readme files within the.

Graphical User Interface

The implementation provides a web interface implemented in React utilizing Material UI components. To install the packages manually the tools yarn or npm can be used. We recomment to use yarn to to its parallel installation and overall better performance.

Setup

First nodejs and npm needs to be installed to build the application

sudo apt-get install nodejs npm

when using yarn as a build tool, execute the following command:

npm install --global yarn

To install the required packages, the following command must be executed directly in the test_hub_frontend:

yarn

After installing all packages in the node_modules folder, the gui can be started by the following command

yarn start

GUI Elements

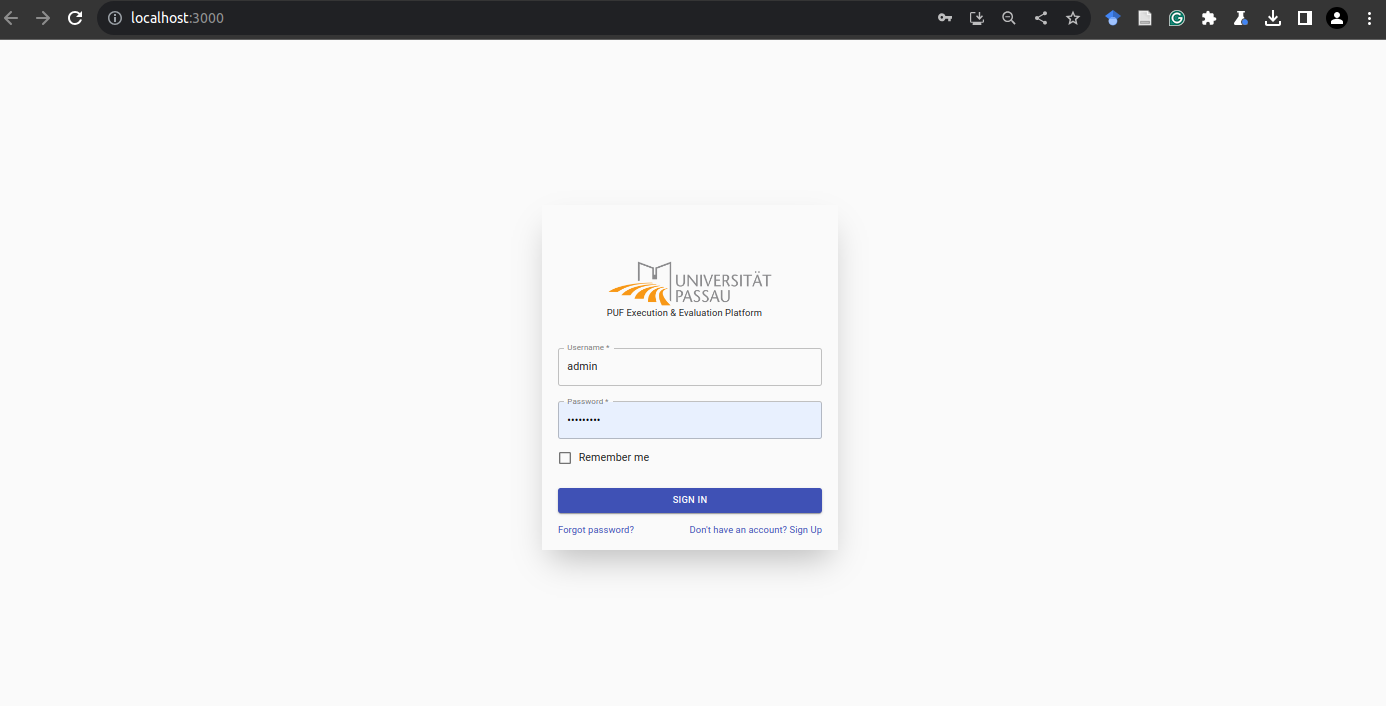

After compiling the web application, the graphical user interface is accessable by localhost:3000. If no current user session is running, the logging page is shown.

If no user is created refer to Backend Currently the dialog to register new users is not implemented and needs to be done manually in the test execution backend.

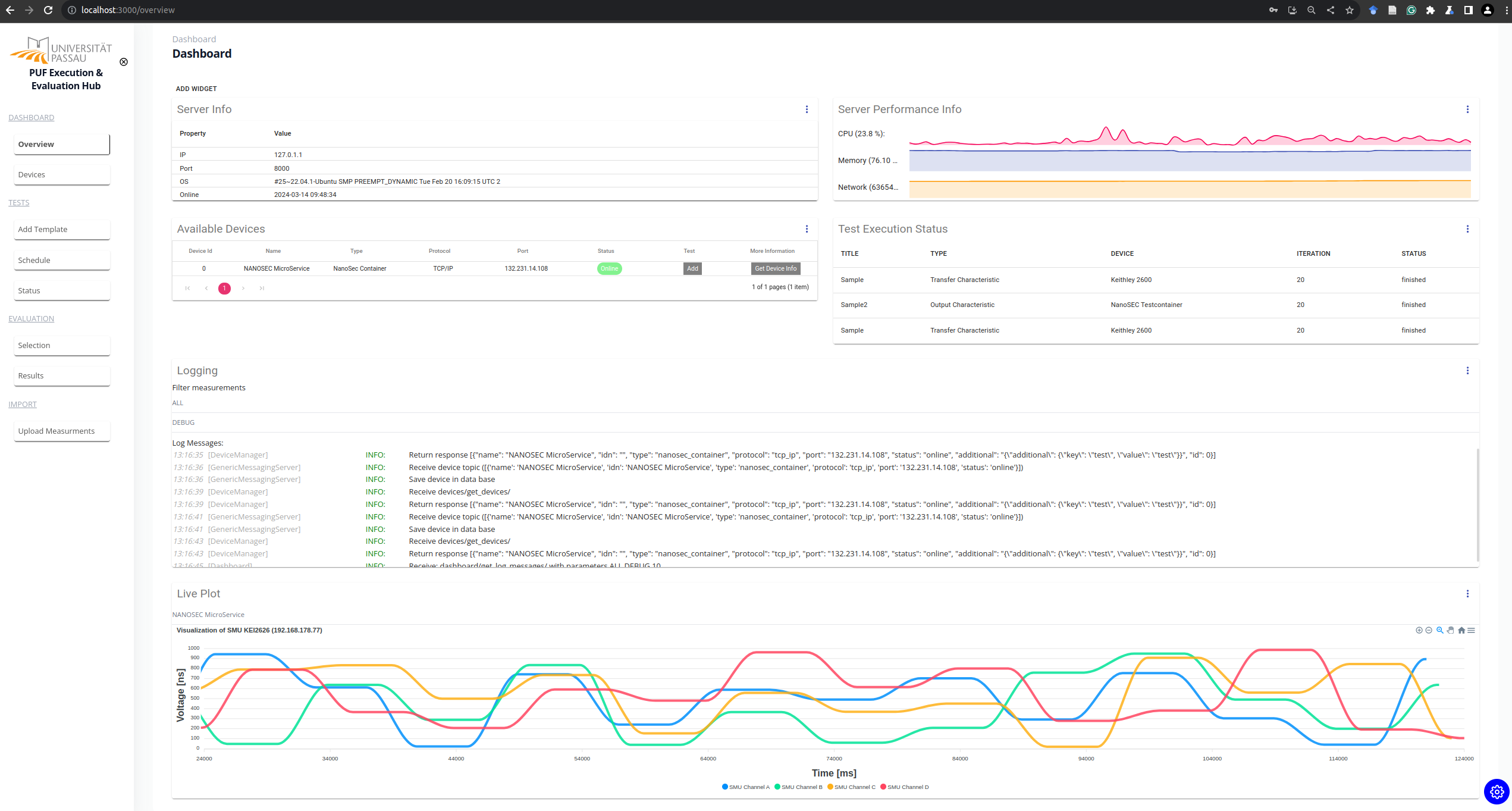

Dashboard

After the logging the dashboard is visualized showing general information, like the connected devices. the currently scheduled tests, logging messages and performance information to monitor the backend or the visualization of live data, e.g. when measurement devices like SMUs or oscilloscopes are connected. The dashboard is organized as grid with three rows, and can be customized by adding or deleting certain widgets.

Device Manager

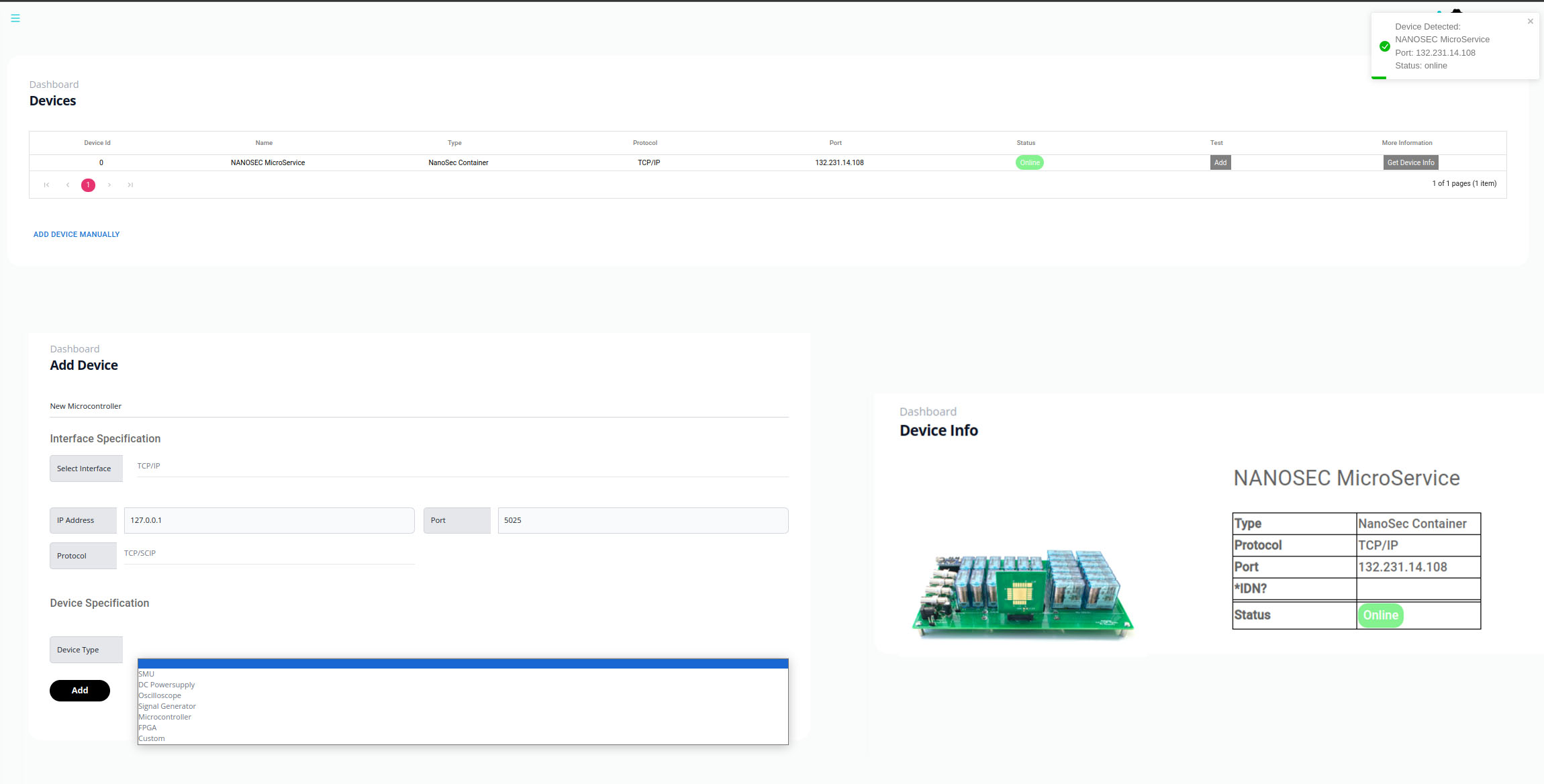

The device manager allows the discovery of devices within the network. These devices or microservices are registered via the messaging service implemented in the backend, a detailed explanation of which will be provided in the backend chapter.

Additionally, users have the option to manually add devices through the designated “Add Device Manually” button. After the device was added, a heartbeat signal is initiated over the specified interface, providing information about the current state of the device. Furthermore, device specific information is shown on the device info page.

Test template generation

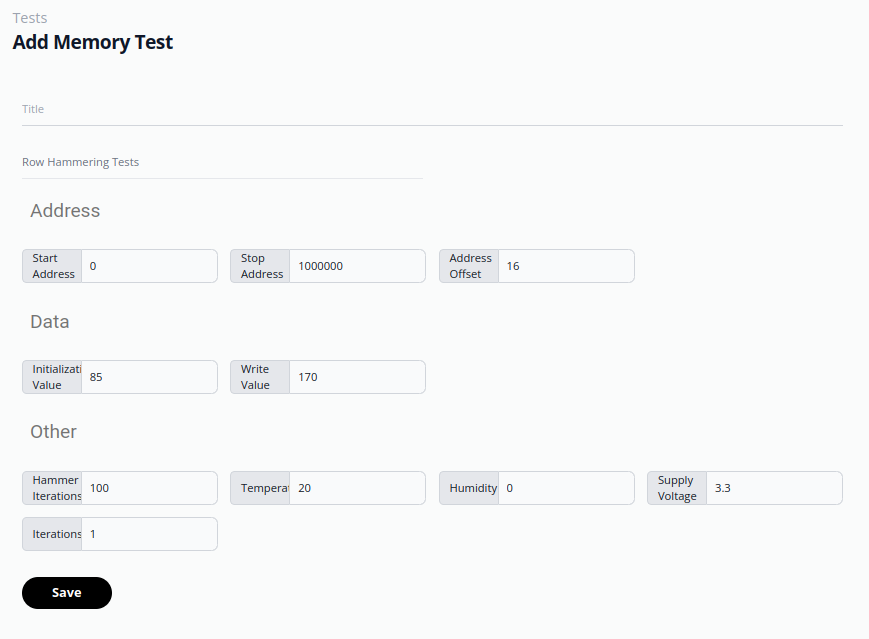

By clicking on “Add Template” a new test template can be added. The list of template classes is shown, which is automatically generated, benerated based on the configuration provided in the backend, explained later.

By selecting the test template category, another auto generated dialog is shown, based on the selected test template config from the backend. By pressing “Save” the template is added and can later be assigned to a test instance.

Scheduling of Tests

After saving the test template the user gets forwarded to the test Schedule page. There a test instance is generated, by selecting a test template and assigning an executor, as well as a sample instance to it. These three components form a test instance which can be scheduled, by pressing “Schedule”. This adds the test to the queue of scheduled test of the executor, running a micro-service. When selecting multiple iterations. Each iteration is executed sequentially in the test queue. If multiple test templates are scheduled on multiple executers, the assignment and execution is fully parallel.

After saving the test template, users are redirected to the Test Schedule page, where a test instance is created. This process involves selecting a test template, assigning an executor, and attaching a sample instance. Together, these elements form a test instance, which can be scheduled by clicking “Schedule”. Once scheduled, the test is added to the queue of scheduled tests managed by a micro-service running in the background.

For multiple iterations, each iteration is executed sequentially within the test queue. If multiple test templates are scheduled across multiple executors, the assignment and execution processes operate in full parallelism, ensuring efficient handling of tasks.

The status of each test execution can be seen on the Status page. Here also live plot components should be added. (Currently not implemented)

Test Selection and Filtering

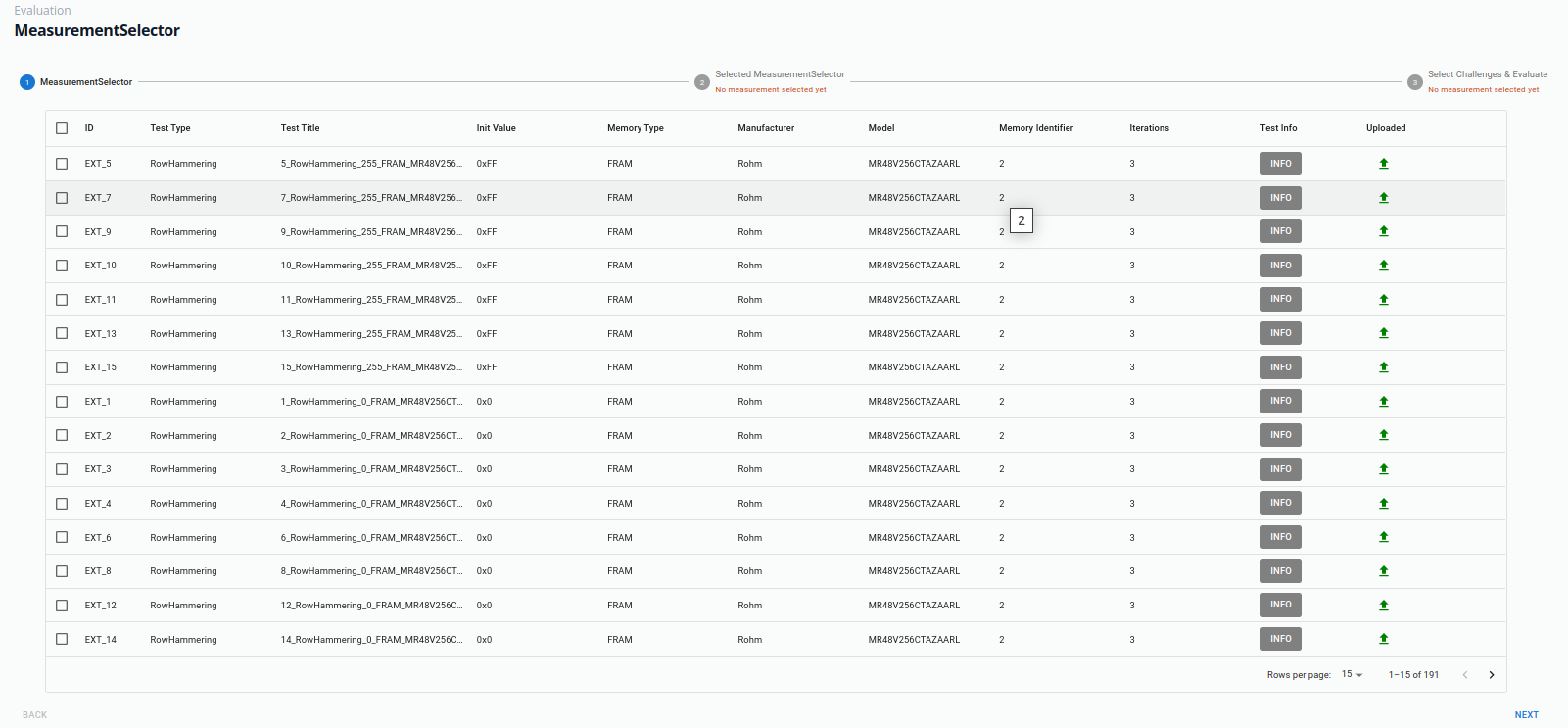

Mesurement results are stored in a seperated Postgres database, which supports a seperation between the measurement data and the states and config of the GUI and backend. This mechanism is explained in the backend chapter. On the Evaluation Selection Page, multiple measurements can be selected for further analysis and visualization.

Based on the selected measurements, differnet post-processing and visualization algorithms are suggested, which can be customized. The visualization is executed by dedicated evaluation runner in the backend.

Evaluation of Raw Results

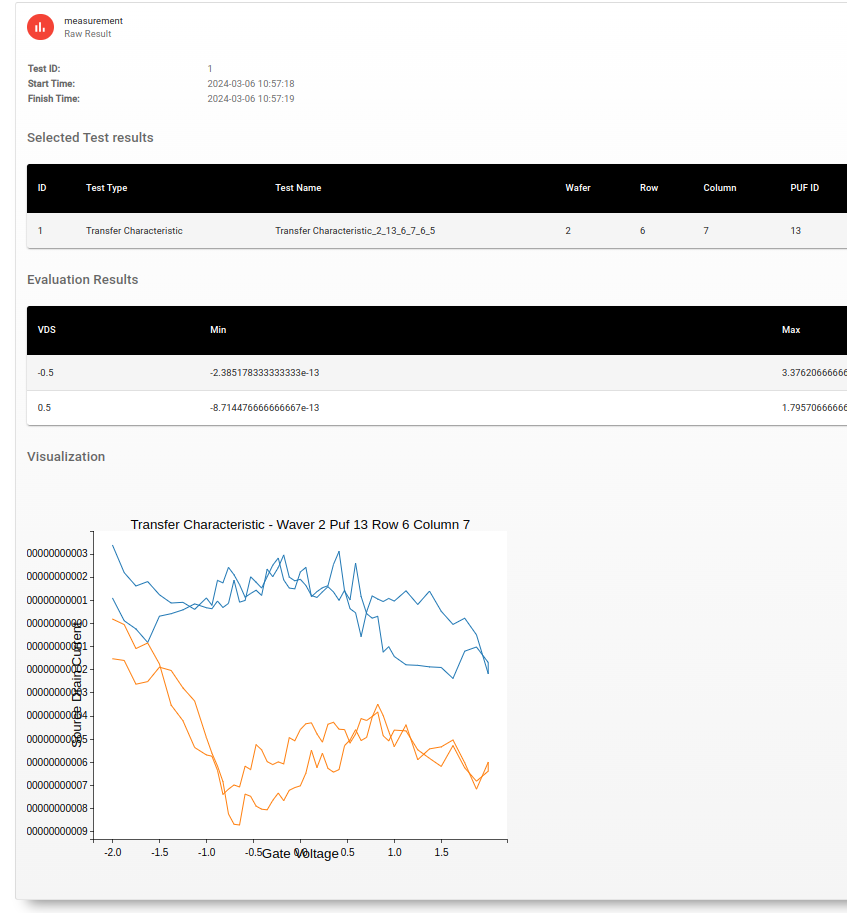

In the results view, the current state of the visualizer runner in the backend is visualized. After finishing the visualization and post-processing, the result can be displayed.

Currently the visualization algorithms supported by the runner are hardcoded. We are working towards generalization of the visualizer and post-processors, configurable with json files as well. The current visualizer supports matplotlib, stored as json files, which can be displayed utilizing the d3 library.

Wafer visualizer

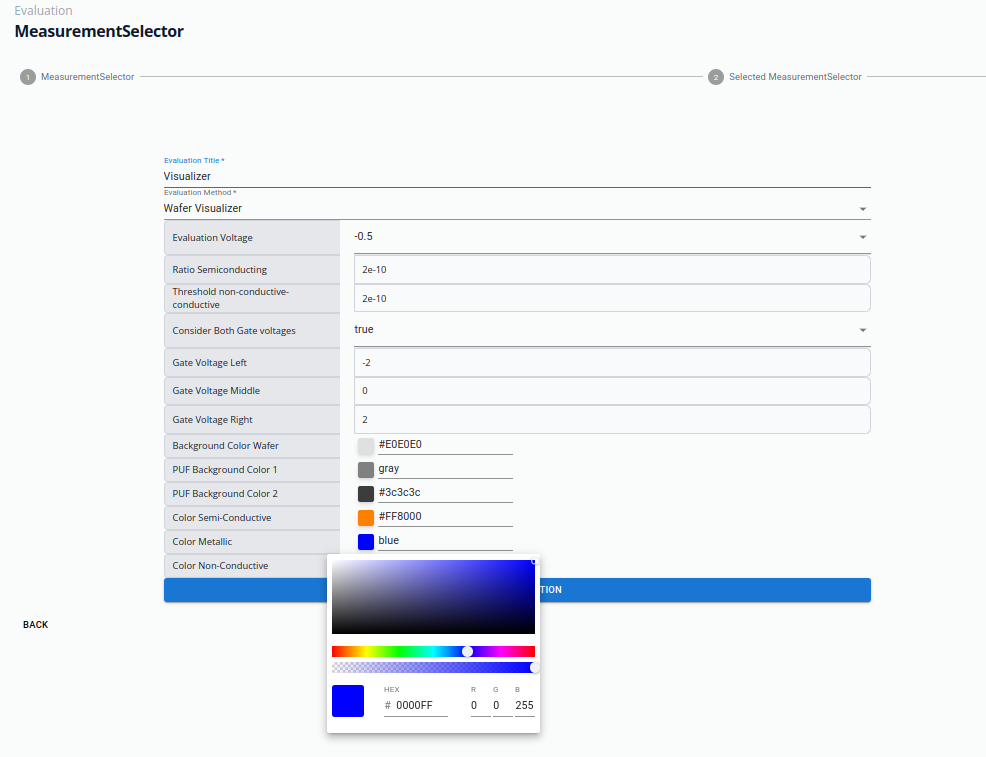

It is also possible to evaluate wafers, such as those used for carbon nanotube field-effect transistors. To facilitate this, a dedicated wafer visualization component was developed.

Backend

This application provides the backend REST service for the PUF Frontend. It stores the state of the GUI, connects to the Postgres databases storing CNT PUF and memory PUF measurements. It additionally contains background runners for evaluation and visualization tasks. It additionally provides authentication functionality, a NATS client to delegate tests to specific devices and direct access to the Generic Test Framework.

Database Structure

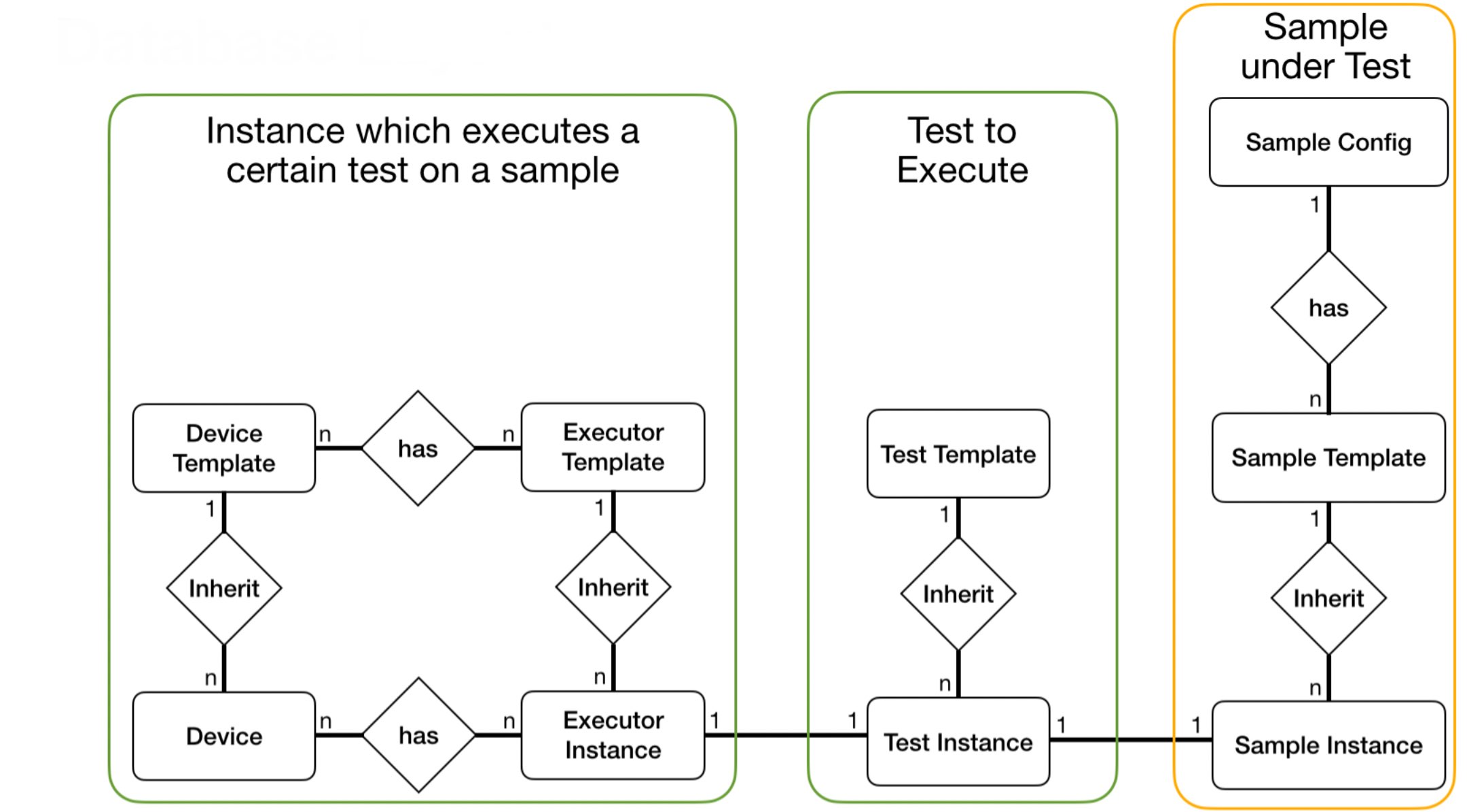

In general, the backend implementation relies on a straightforward database schema, as illustrated in the following figure.

Test execution can be categorized into three basic groups. First, the ‘sample under test’ represents the component on which the test is performed. For instance, in the case of memory-based PUFs, the sample would be the memory module. The second group encompasses the definition of the test itself, specifying the parameters and conditions for its execution. For example, this includes defining row-hammering tests. The third class describes the executing entity responsible for the execution of the test on a given sample, for example a memory controller executing a test on a specific sample. This database schema is automatically generated from a json configuration, explained later. Also the frontend GUI is adopted dynamically to this scheme.

Each of these groups has specific tables to store their respective templates. For instance a Sample config for a memory based PUF describes that a memory must have an address bus a data bus, etc. Whereas the Sample template describes a memory of specific properties, e.g. a SRAM memory module of a certain manufacturer with a set of properties. Instances of these memory modules are stored in the ‘Sample Instance’ table.

This structure also applies to the ‘Tests’ category. Here, a ‘Test Template’ defines the parameters of a specific test, like a row-hammering test. A Test Instance refers to the actual execution of a test template on a particular sample.

The definition of devices is slightly more complicated, as multiple devices may be necessary to execute a single test. For instance, conducting measurements, may require a micro-controller, a function generatorand an oscilloscope. These devices are defined as devices, based on a device template. All these devices are connected by a executer instance responsible, for the execution of a test instance.

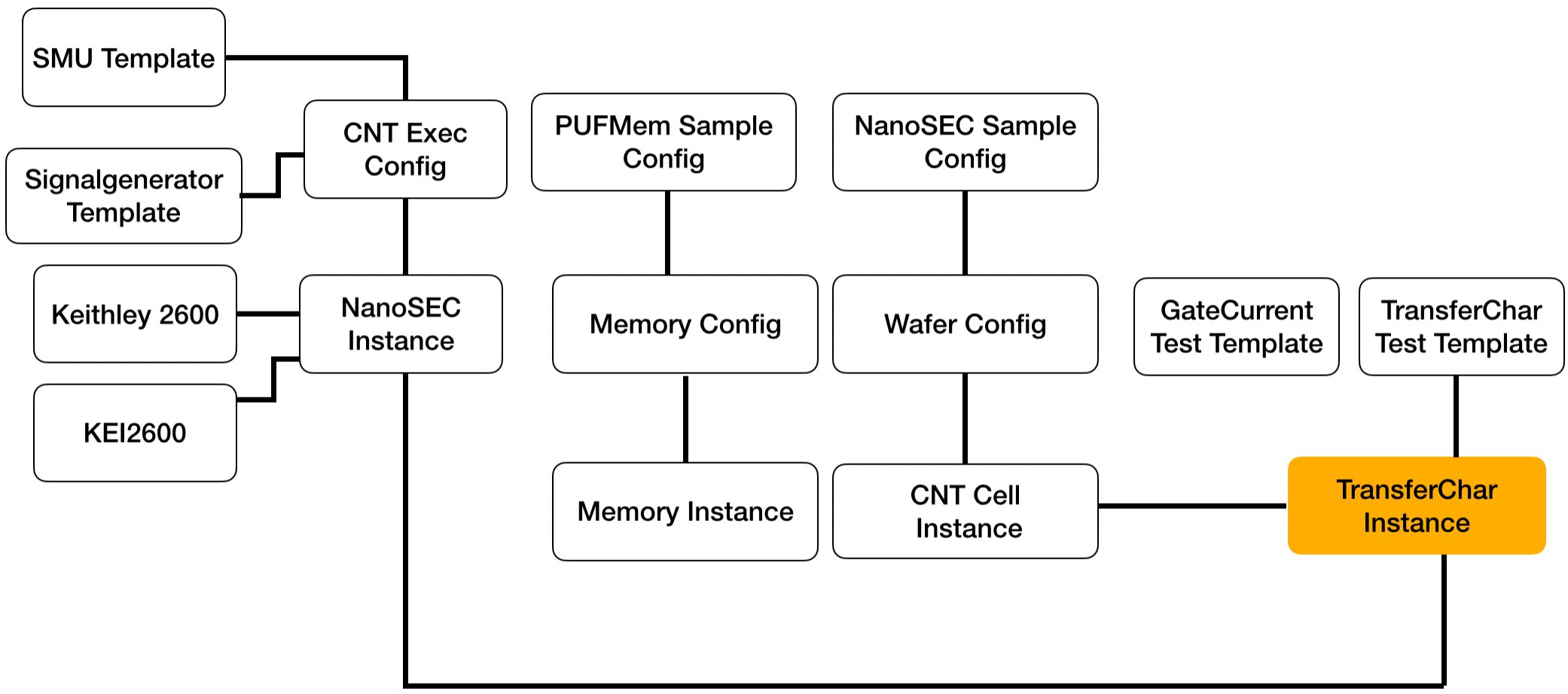

A sample configuration for a carbon-nanotube based PUF implementation can be seen in the following sample:

Automated test scheme implementation

Within the backend it is possible to add new test categories, sample types or device classes without writing a single line of code. We provide a json definition, which allows the automatic generation of the database scheme, as well as a dynamic adoption of the GUI elements in the frontend.

The config files must be added to the config folder in the backend and will be automatically discovered parsed and the database scheme and GUI adjustment will be done.

Within this folder a tests_config.json defines the different test categories:

{
"test_categories": {
   "cnt_puf": {
      "name": "Carbon Nanotube Tests",
      "folder": "cnt_puf"
   },
   "memory": {
      "name": "Memory Tests",
      "folder": "memory"
   },
   "script": {
      "name": "Script Tests",
      "folder": "script"
      }
   }
}

To add a new test category a new entry like

{
"sample_category": {
      "name": "Sample Category",
      "folder": "sample_category"
   }
}

must be added.

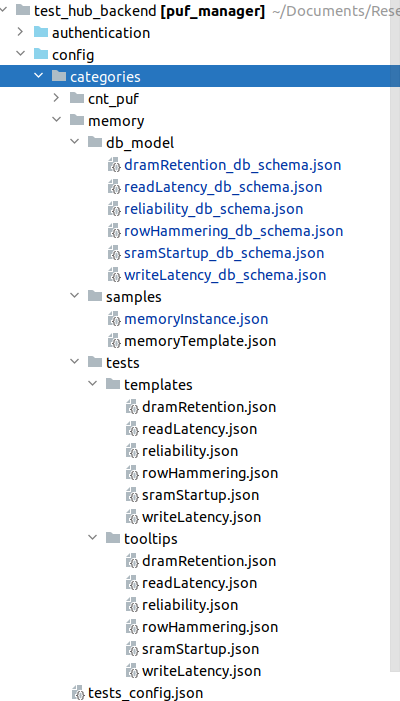

Afterwards, the following folder structure must be established according to the database configuration as shown above.

The tests folder contains configurations for all test templates, along with optional additional tooltips for the configuration parameters.
The samples folder contains all sample configuration files, defining the structure of sample instances and templates.
The db_model binds to gether all configurations of a category. It specifies which sample aligns with which template, among other connections.

To introduce new test templates, a “templates” folder must be added within the designated folder of the respective test category. Inside this folder, a “tests” directory is created. For instance, in the case of row-hammering tests, the configuration is defined as follows:

{
"start_address": 0,
"stop_address": 1000000,
"initialization_value": 85,
"write_value": 170,
"hammer_iterations": 100,
"address_offset": 16,
"temperature": 20,
"humidity": 0,
"supply_voltage": 3.3,
"iterations": 1
}

The backend automatically parses this config and creates the database and GUI elements. The provided values are set as default parameters. Furthermore, this JSON format is compatible with our comprehensive test execution framework, which will be elaborated on later.

Moreover, users have the option to append additional tooltips by including a file with identical naming within the designated tooltips folder. These tooltips are then displayed within the GUI, enabling supplementary descriptions of test parameters. For example, in the context of row-hammering tests, a “rowHammering.json” file would be added to the tooltips folder containing the following content:

{
"start_address": "Start address of the memory module (maximum 32-bit, e.g., 0x00000000)",
"stop_address": "Stop address of the memory module (maximum 32-bit, e.g., 0xffffffff). If this value exceeds the address space, the test is executed until the last address in the address space.",
"initialization_value": "Value to write to the memory module (maximum 32-bit, e.g., 0x55555555).",
"hammer_value": "Value written during the row-hammering operation.",
"hammer_iterations": "Number of write iterations for each row-hammering iteration.",
"address_offset": "When no address mapping is available, always hammer 'Address Offset' cells and evaluate the next 'Address Offset' ones.",
"temperature": "Only applicable if a climate chamber is available.",
"humidity": "Only applicable if a climate chamber is available.",
"supply_voltage": "Supply voltage of the memory module. Only applicable if a power supply is connected.",
"iterations": "Number of iterations for this test."
}

Now we want to specify the samples on which we want to apply a certain test template. To accomplish this, we need to establish a sample folder. Within this folderthe sample template, as well as the definition of a sample instance is stored. Those are subdivided into two files whreas a sample sample template for memory modules can be defined as follows:

{
"type": "None",
"manufacturer": "None",
"model": "None",
"start_address": 0,
"stop_address": 0,
"data_width": 16,
"address_width": 32,
"write_cycle_time": 0,
"read_cycle_time": 0
}

When incorporating a distinct test template, the attributes may vary significantly. The data type for database creation is generated automatically. Caution: For float fields, it’s essential to specify float numbers, such as 0.0 instead of 0, to ensure the creation of a float field; otherwise, an integer field will be generated.

Furthermore, alongside the template, an instance must be included. In this example, the memroyInstance.json simply adds a reference to the template and a specific identifier. Further fields can be added, simultanously to the template generation.

{
"template": {
   "ref": "MemoryTemplate"
},
"memory_id": 0
}

Ultimately, a configuration file must be specified combining all the configurations. This alows to reuse sample configurations across multiple tests, or conversely, allows various tests to utilize the same sample configurations. The following config defines the different tables for row-hammering tests. The provided configuration delineates the distinct tables for row-hammering tests. Each test is identified by an identifier and a name, both displayed within the GUI. The GUI filter section enables the arrangement of elements into different groups on the GUI. For instance, fields containing addresses are automatically assigned to the address group, identifiers containing data are allocated to the data group, and any remaining elements are categorized under the “other” group.

In the following the different tables are defined. Here we can find all tables as defined in the figure showing the database scheme, except the device and executor tables which are generated by user interaction from the GUI.

{
   "identifier": "rowHammering",
   "name": "Row Hammering Tests",
   "category": "memory",
   "gui_filter": [
      {
         "identifier": "address",
         "name": "Address"
      },
      {
         "identifier": "value",
         "name": "Data"
      },
      {
         "identifier": "other",
         "name": "Other"
      }
   ],
   "tables": [
      {
         "db_name": "RowHammeringTemplate",
         "type": "testtemplate",
         "schema": "rowHammering.json",
         "fields": {
         }
      },
      {
         "db_name": "MemoryTemplate",
         "type": "sampleTemplate",
         "schema": "memoryTemplate.json",
         "fields": {
         }
      },
      {
         "db_name": "MemoryInstance",
         "type": "sample",
         "schema": "memoryInstance.json",
         "fields": {
         }
      }
   ]
}

After specififying the configuration, the database scheme must be generated calling the following command:

python3 ./utils/db_schema_generator.py

This command will add a generated folder in the test_manager app. Caution: Already generated models will not be overwritten, when modifying an already existing config, make sure you delete the corresponding python file beforehand. Furthermore, this will only generate the models without migrating them. The migration requires the execution of the commands:

python3 manage.py makemigrations
python3 manage.py migrate

To execute all commands in one step, the following shell script can be exectued:

.\redo_migrations.sh

Caution: This command also deletes the local sqlite database, deleting all samples and templates. The database storing the measurement results is not touched.

Definition of Evaluations and Visualizers

To assess and present measurement results effectively, we require the definition of evaluators and visualizers. These components are executed by specific evaluation runners, which handle the requested evaluation and visualization tasks independently from the backend application, running in a separate thread. Due to the diverse parameters involved, the definition of visualizers cannot be accomplished through simple JSON configuration files. Matplotlib library serves as the standard tool for all visualizations.

In order to establish a seenkess interaction with the frontend and generate artifacts such as vector graphics for visualization and JSON files for evaluation results, a template class is introduced. Visualizers must inherit from this template class to ensure a standardized interface for execution.

TODO: Develop a generic adapter to connect with PostgreSQL databases hosting measurement results. This adapter should operate independently from the database responsible for storing the application’s state.

import json
import threading
from datetime import datetime

from evaluation_manager.evaluation_models.general import EvaluationStatus, Visualizations
from evaluation_manager.evaluation_runner.evaluation_handler.cnt_puf_evaluation_handler import CNTPUFEvaluator

from config.evaluation_config import *


class EvaluationRunner:
   """
   This class contains the functionality to  outsource visualization and post-processing tasks in dedicated threads,
   executed in the background. This allows a decoupling of computation intense visualization tasks and the main thread
   of the backend server.
   """

   def __init__(self, logger, eval_status: EvaluationStatus, visualization_type: str, visualization_properties: dict):
      """
      Initialize EvaluationRunner instance.

      Parameters:
            logger: Logger object for logging messages.
            eval_status (EvaluationStatus): Evaluation status object.
            visualization_type (str): Type of visualization.
            visualization_properties (dict): Properties for visualization.
      """
      self.logger = logger
      self.evaluation_status = eval_status
      self.visualization_type = visualization_type
      self.visualization_properties = visualization_properties
      self._visualizer_thread = threading.Thread(target=self._visualizer_thread_function, args=())
      self.output_json_objects = []
      self.output_evaluation_dict = []

   def run(self):
      """
      Starts the visualization runner thread.
      """
      self.logger.info('Start Visualization runner')
      self._visualizer_thread.daemon = True
      self._visualizer_thread.start()

   def visualize(self):
      """
      Perform visualization based on the visualization type.
      TODO: Enable dynamic extension of evaluation configuration.
      """
      cnt_fet_runner = CNTPUFEvaluator(self.logger)

      if self.visualization_type == VISUALIZATION_TYPE_RAW_FIGURE:
            self.output_evaluation_dict, self.output_json_objects = \
               cnt_fet_runner.get_raw_evaluation_visualization_result(self.evaluation_status.id, DATABASE_NAME,
                                                                     self.visualization_properties)
      elif self.visualization_type == VISUALIZATION_TYPE_WAFER_OVERVIEW:
            self.output_evaluation_dict, self.output_json_objects = cnt_fet_runner.visualize_wafer_overview(
               self.evaluation_status.id, DATABASE_NAME, self.visualization_properties)
            # TODO don't use these dummy values!!
            self.output_evaluation_dict = [{'id': 0, 'wafer': 2, 'row': 3, 'column': 2, 'pufID': 5,
                                          'nrSelectedCells': 144, 'nrConductiveCells': 30,
                                          'nrNonConductiveCells': 100,
                                          'nrSemiConductiveCells': 14, 'hammingWeight': 0.9}]

      return bool(self.output_evaluation_dict and self.output_json_objects)

   def _visualizer_thread_function(self):
      """
      Execution function within the visualizer thread tasked to decouple computationally intensive visualization
      from the main application.
      """
      try:
            self.logger.info('Start Visualization thread')
            self.evaluation_status.status = STATUS_RUNNING

            if self.visualize():
               for output_json in self.output_json_objects:
                  self._save_visualization_result(output_json)
                  self.evaluation_status.status = STATUS_FINISHED
                  self.logger.info('Evaluation successful')
            else:
               self.evaluation_status.status = STATUS_FAILED

      except Exception as e:
            self.logger.error(f'Evaluation failed: {e}')
            self.evaluation_status.status = STATUS_FAILED
      finally:
            self.logger.info('Update Evaluation object')
            self.evaluation_status.stopTime = datetime.now()
            self.evaluation_status.save()

   def _save_visualization_result(self, output_json):
      """
      Stores the visualization object in json format allowing for a seamless visualization in the frontend.
      E.g. using the d3-library.

      :param output_json: json-object representing the visualization.
      :return:None.
      """
      visualizations = Visualizations(
            evaluationStatus=self.evaluation_status,
            visualizationType=self.visualization_type,
            resultObject=json.dumps(self.output_evaluation_dict),
            json=output_json
      )
      visualizations.save()

Generic Messaging Service Endpoints

This section outlines the service-oriented architecture facilitated by the NATS framework. This framework enables seamless interaction among microservices responsible for test execution and the backend infrastructure.

In this architecture, devices communicate by subscribing to specific topics, while other devices publish relevant information on these topics. Subsequently, this information is disseminated to all subscribers within the network.

The provided interface provides the following functionalities:

Device Detection: It aids in identifying devices within the network.

Test Scheduling: Microservices utilize this interface to schedule tests efficiently.

Test Execution Monitoring: It facilitates real-time monitoring of test execution states.

Live-Plot functionality: Live data can be provided by a streaming interface, to enable visualization of meausrements during the execution, e.g. visualizing the SMU measurements.

Consequently, the interface offers the following endpoints, which must be implemented by any microservice instance to participate in the network:

Topic: schedule_test Payload: Concatination of the test template payload, the sample and device payload.
Example:
{}
Topic: get_test_status Payload: Porvides the test id and the current state of the execution in percentage.
Example:
{}
Topic: get_devices: Payload: Device info following the configuration json file.
Example:
{}
Topic: stream_data: Payload: Streaming data as array to be visualized at the frontend.
Example:
{}

REST Endpoints

The app is written in python using Django as main backend framework. Django allows us to subdivide the application into multiple apps with different functionality:

Authentication

Provides the functionality required for the logging functionality, which is based on a token, which is passed from the frontend.
- It provides the following endpoints:
  - POST /authentication/logout deletes the requested token and prevents access to all services after sending logout.
    - Parameters:
      - token: token to delete
    - Returns: HTTP_205_RESET_CONTENT

Dashboard Manager

Provides all endpoints for widgets on the GUI dashboard

It provides the following endpoints:

GET /dashboard/get_log_messages/ returns log messages from the backend
- Parameters:
  - log_category: e.g. all or specific parts of the backend, e.g. evaluation_manager.
  - log_type: e.g. Returns messages of a specific log type
  - message_count: number of messages to retrieve.
- Returns:
```
{"logMessages": [
        "10:01:12 [Evaluation Manager] devices_view.py:34 ERROR: Receive request failed",
        "10:01:12 [Evaluation Manager] devices_view.py:34 INFO: Receive request succeeded"]}
```

GET /dashboard/get_server_info/

Returns:

{"serverinfo": [{"property": "IP", "value": "127.0.0.1"},
               {"property": "Port", "value": 8000},
               {"property": "OS", "value": "UBUNTU LTS"},
               {"property": "Online", "value": "31.12.2023 00:00"}]}
